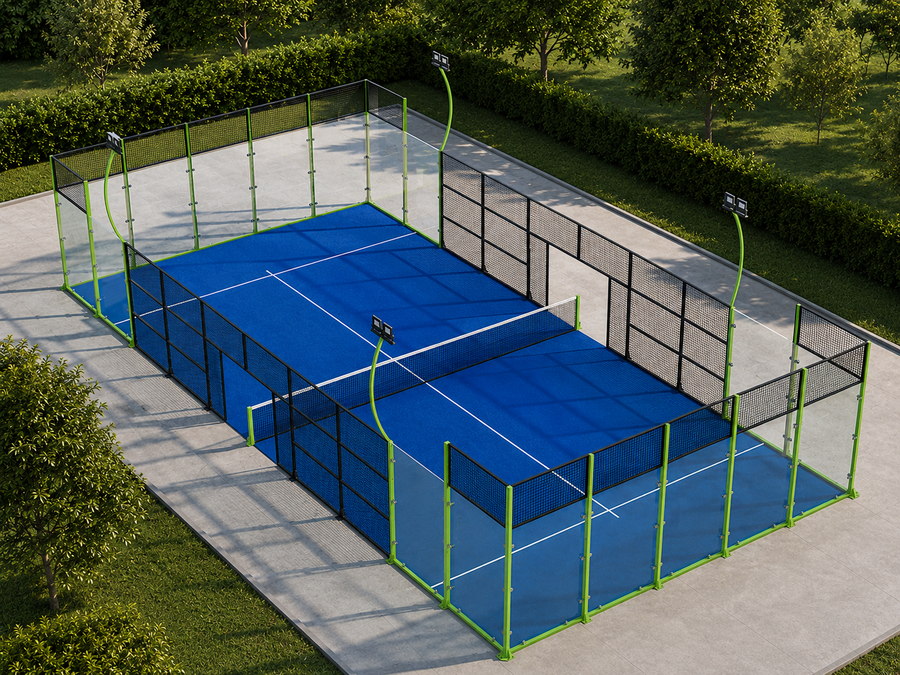

WOLP-C Classic Padel Court
WolPadel Professional Series
Solid and Economical
The Pillar Pro is our classic structural solution, featuring a robust pillar system for maximum durability. Ideal for hotels, schools, and community sports centers.
- Galvanized steel structure
- 10mm tempered glass
- High-density curly monofilament turf
- FIP standards compliant
Built for Performance & Durability
Every component is engineered to international standards, combining industrial-scale manufacturing with precision craftsmanship.
Q235B Galvanized Steel Structure
4m-height double pillars (80x60mm welded to 140x140mm) with hot-dip galvanization. Engineered to resist wind loads and corrosion in any climate.
12mm EN-Certified Tempered Glass
18 panels of 1996x3000mm tempered glass manufactured to EN12150-2:2004 — impact-resistant, optically clear, and certified for high-intensity sports use.
200W LED Lighting System
8 x 200W LED floodlights with IP65 protection rating, delivering 500+ lux uniformity — optimized for evening play and broadcast-quality illumination.
Professional Artificial Turf
KDK monofilament curly grass — 12mm pile height, 52,500 stitches/m2, EN14041:2008 certified. Quartz sand infill (10 kg/m2) for optimal ball bounce and player comfort.
Precision Steel Net & Posts
10m long synthetic fiber net — 0.88m center height, 0.92m at ends. Stainless Steel 304 fittings and rubber pads on all glass connections.
Versatile Lighting Poles
Z-style and C-style lighting pole options — minimum 6m height, fully customizable to meet professional game lighting standards and venue aesthetics.
Full Specifications
All dimensions and material grades comply with FIP (International Padel Federation) and European EN standards.
| Component | Specification |
|---|---|
| Court Dimensions | 20m x 10m (FIP standard) — outdoor or indoor |
| Steel Structure | Q235B steel — double pillars 80x60mm (combined 140x140mm), 4m height; hot-dip galvanized + electrostatic powder coat |
| Tempered Glass | 12mm thickness — 18 panels of 1996x3000mm — EN12150-2:2004 certified, impact-resistant |
| Mesh Fence | 4mm diameter wire, 50x50mm aperture, curved-rod frame; Q235 steel frame tube 20x40mm |
| Artificial Turf | KDK monofilament curly grass — pile 12mm, density 52,500 stitches/m2; PP+Net backing, latex coating — EN14041:2008 |
| Turf Infill | Quartz sand 1.6-1.25mm — 10 kg/m2; visible fiber 2-3mm above infill |
| LED Lighting | 4 towers x 2 heads — 8 x 200W, 500+ lux, IP65; Z-style & C-style poles (min. 6m, customizable) |
| Net | Synthetic fiber — 10m long, 0.88m center height, 0.92m at ends |
| Net Posts | Stainless Steel 304 with rubber pads and bolt glass fittings |
| Surface Treatment | Hot-dip zinc coating + electrostatic powder coating — custom RAL colors available |
| Warranty | 10-year structure warranty; 5-year turf warranty |
| Certification | FIP (International Padel Federation) · EN12150-2:2004 · EN14041:2008 · CE |
Frequently Asked Questions
Ready to Build Your WOLP-C Classic Padel Court?
Fill in the form and our team will send you a detailed quote — including 3D layout design, full specification sheet, and factory-direct pricing — within 24 hours.
